Motion Control Buyers Guide

Motion Control – Pan-Tilt Stage

Van Nuys, CA – — Motion Control – High Resolution, Motorized, Pan-Tilt Stages have been added to the extensive line of OES (Optimal Engineering Systems, Inc.) motion control products. These motorized Pan-Tilt Stages are available in two sizes. The PT60-1 Pan-Tilt Stage is a combination of two 60 mm (2.362 in.) rotary stages and the PT100-1 is a combination of two 100 mm (3.937 in.) rotary stages, set at a 90O angle to each other. The rotary stages of each Pan-Tilt stage features a high repeatability of 0.005O (18 arc-sec), a positional accuracy of 0.005O (18 arc-sec), and a resolution of 0.001O = 3.6” (10 Micro-steps per Step Motor Driver in use).

Motion Control –  Six-axis Robot!

Vaughan, Ontario, Canada — Motion Control Components — Mecademic is a Canadian robotics manufacturer that builds the world’s smallest, most precise, and easy-to-use industrial robotic arm, the Meca500. The Meca500 robot excels in the precise and repetitive manipulation of small parts and tools in a variety of industries.

The six-axis robot can handle payloads up to 500 g with an unmatched accuracy of 0.005 mm (5 µm).

Motion Control – Linear Bearings Compared

E. Longmeadow, MA – LM76’s high speed, “Black Racer,” ceramic coated linear bearings out perform linear ball bushing and linear polymer bearings in high speed and high acceleration/deceleration applications. These drop in replacement linear bearings are designed to be used in standard open and closed pillow blocks. “Black Racer” linear bearings are ideal for: Rocket sleds, crash test systems, and other high speed, high acceleration application.

Motion Control – Linear Voice Coil Motor Tolerates Tilting

Van Nuys, CA — Motion Control – Moticont has added a new 1.25 in (31.8 mm) stroke linear DC motor to its series of LVCM Linear Voice Coil Motors. The new LVCM-051-051-06 Linear Voice Coil Motor has been designed with a larger radial air gap to tolerate the tilting and misalignment that can be experienced when clamping out of parallel objects or moving off-center loads. This compact linear motor is 2.000 in (50.8 mm) in dia. with a 2.00 in. (50.8 mm) long housing and at mid stroke is just 2.88 in. (73.0 mm).  Peak force is 9.5 lb (42.2N) at a 10% duty cycle and continuous force is 3.0 lb (13.3 N).

Motion Control – 1.0 Inch Diameter Voice Coil Motors!

Van Nuys, CA – Motion Control Components – Moticont has added to it’s line of Linear Voice Coil Motors, LVCM, two 1.000 in. (25.4 mm) diameter motors. The LVCM-025-022-01 has a stroke length of 0.375 in. (9.5 mm) a mid-stroke length of 1.30 in. (33 mm) and it has a high force to size ratio of 16.9 oz (4.7 N) and a peak force of 53.5 oz. (14.9 N) at 10% duty cycle. The LVCM-025-029-01 has a stroke length of 0.625 in. (15.9 mm) a mid-stroke length of 1.68 in. (43 mm) with a continuous force of 18.2 oz (5.1 N) and a peak force of 57.7 oz. (16.0 N) at 10% duty cycle.

These compact, high-force-to-size ratio motors are ideal for: work holding and clamping, medical devices, assembly, testing, laser machining and drilling, wafer handling, optical focusing, dynamic vibration absorption, scanners and laser beam steering and filtering.

Motion Control – Servo Motor Three-axis Gimbal Mount!

Van Nuys, CA – The New AU300-AER-02 Three-axis Gimbal Mount from OES (Optimal Engineering Systems, Inc.) with Three-Phase Brushless Servo Motors and Quadrature Incremental Encoders features very high resolution and high speed. Each axis features: Low backlash worm gear drives and precision “V” groove and cross roller bearings for high accuracy and repeatability. The typical accuracy is 0.05° equal to 180 arcsec and typical repeatability is +/- 0.01° equal to +/- 36 arcsec. The maximum travel speed of each axis is 45° per second.

This new three-axis gimbal mount handles loads up to 10 kg (22 lbs) and has a clearance of 300 mm x 300 mm (11.8 in. x 11.8 in.) around the roll axis stage and each stage is capable of the full 360° rotation of its axis. The azimuth axis rotary table is mounted on a large 360 mm (14.173 in.) x 360 mm (14.173 in.) x 13 mm (0.512 in.) plate with handles and has predrilled accessible mounting holes for easy integration into new or existing applications and for increased stability.

Motion Control – Hollow Shaft Harmonic Drive

Vaughan, Ontario, Canada — Motion Control Components — The new FBS-2UH gear unit series from Harmonic Drive® features a large, hollow shaft with a compact outer diameter. The extra large hollow shaft is ideal for robots and machines requiring complex cabling to pass through the axis of rotation.
The new gear unit design features Harmonic Drive’s “S” tooth profile for optimal tooth engagement resulting in high torque, high-torsional stiffness, long life and smooth rotation.

Motion Control –  Electric Cylinders!

Van Nuys, CA — Motion Control – The SDLM Series of Electric Cylinders from Moticont now includes a 1.0 inch (25.4 mm) stroke actuator in their compact 0.750 in. (19.1 mm) diameter series of linear actuators. The new SDLM-019-095-01-01 actuator features a continuous force of 6.8 oz (1.9 N) and a peak force of 21.6 oz (6.0 N). A precision linear optical quadrature encoder is integrated and protected inside the actuator housing.

Motion Control – Servo Motor Drivers

Van Nuys, CA – Motion Control – This series of drivers is a high performance, cost effective servo motor driver to implement intelligent motion control. The driver incorporates an advanced architecture and surface mount technology to achieve an exceptional power density. This series is designed to drive voice coil, brush-type and brushless DC motors at a high switching frequency. They receive step and direction signals or analog signal from motion controller.

Motion Control – Absolute Encoder for Harsh Environments

Vaughan, Ontario, Canada — Motion Control Components — Netzer VLX encoders are ideal for OEM applications. Featuring an open frame, 2 plate design, the sensor is lightweight, highly tolerant to temperature, shock, EMI, RFI and magnetic fields. It offers a unique combination of high performance at an economical cost.

The VLX-60 is a new member of the VLX series of Electric Encoders™ a product line based on Netzer Precision Motion Sensor proprietary technology. EE products are characterized by features that enable unparalleled performance including:

Motion Control – 3/4 Inch Diameter Voice Coil Motor!

Van Nuys, CA – Moticont has introduced the GVCM-019-016-02 Linear Voice Coil Actuator (Linear DC Motor). This small 0.75 in. (19.1 mm) diameter actuator, also called an Electric Cylinder, has a high force to size ratio of 7.4 oz (2.1 N) continuous force and 23.7 oz (4.4 N) of peak force and a stroke length of 0.250 in. (6.4 mm). The housing measures just 0.625 in. long and in the fully extended position the shaft extends 0.436 in. (13.5 mm) beyond the face of the housing.

Motion Control – Electric Cylinder has Increased Throughput!

Van Nuys, CA — The Compact SDLM-051-070-01-01 Direct Drive Linear Actuator with integrated position and temperature sensors is the latest addition to the patented series of zero backlash, zero cogging, high acceleration, high speed, high resolution, long life actuators from Moticont. This direct drive linear Actuator, also referred to as an Electric Cylinder is 2.000 in. (50.9 mm) in diameter and the compact housing length is just 2.750 in (69.9 mm).

Motion Control – Linear Actuator

Cost-competitive Alternative to Pneumatics, Starting at $300 US/ea

Vaughan, Ontario, Canada — Motion Control Components — The LDL has been designed as a cost-competitive alternative to pneumatics. A common trend in industrial automation is that users are looking for electric alternatives to their pneumatic components for a number of reasons: control, cycle life, operating cost and environment, etc. The LDL series actuator features several innovative cost reduction elements that result in a list price starting at $300 US.

Motion Control – Yaw and Pitch Stages

Van Nuys, CA – OES (Optimal Engineering Systems, Inc.) has introduced three high accuracy Yaw-Pitch stages. The YP110-10-01 (stepper motor driven), the YP110-10-02 (brushless servo motor driven) and the YP110-10-03 (DC servo motor driven). The Yaw-Pitch stages are ideal for the precise measurement of angles or the curvature of an object.

The pitch stage has cross roller guides and a range of travel of +/- 10 degrees. The maximum speed is 14 degrees per second with stepper motor driven version and 90 degrees per second with the servo motor driven versions.  The 65 mm x 65 mm table has a precise pattern of threaded holes for fixtures or tooling and has an accuracy of 0.05 degrees and repeatability of +/-  0.01 degrees.

Motion Control – Multi Axis Motion Controller

Vaughan, Ontario, Canada — Motion Control Components — The DMC-21×5 is the latest addition to the Econo family and is an easy upgrade path from the long running DMC-21×3 series. The DMC-21×5 utilizes nearly all of the same peripherals as the DMC-21×3 controller, making the transition simple.

The main difference between the DMC-21×5 and its predecessor is a state of the art ARM based processor that places its communication, command processing and memory capabilities on par with Galil’s line of current generation motion controllers, while still remaining at the Econo Series price of the DMC-21×3.

Control – Miniature Electric Cylinder

Van Nuys, CA — Motion Control – Moticont’s GVCM-016-010-01 Miniature Linear Voice Coil Motor (Linear DC Motor) has a high force to size ratio with 5.0 oz (1.4) continuous force and 15.7 oz (4.4 N) of peak force with a housing measuring just 0.625 in. (15.9 mm) dia. by 0.375 in. (9.5 mm) long.

This motor features high acceleration/deceleration, high speed, high reliability, zero backlash and a 0.125 inch (3.2 mm) stroke length. This very small brushless servo motor is an ideal low cost replacement for pneumatic linear actuators.

Also called an Electric Cylinder, this linear actuator has a threaded 2-56 UNC-2A shaft for a backlash free connection. The housing and coil each have 2 2-56-UNC-2B threaded mounting holes on 0.25 in (6.35 mm) centers. The built in centered shaft facilitates the commissioning of the motor for easy integration into current and future applications.

Motion Control – Linear Servo Controller

Forestville, CA, – Motion Control – The SCA814 Linear Servo Controller was specifically designed to control single phase, non-comutated devices like voice coil motors. like it’s field proven predecessor the SCA754 is a high performance single axis DC motor controller and amplifier system. It is comprised of a highly integrated single PC board level product with a cohesive interface.

This card provides current amplification and analog servo control interfaces. The single-phase characteristic of the current amplifier makes it particularly well suited for DC motors such as galvanometers and voice coils. It was specifically developed for control of motor applications requiring both high temporal and spatial servo precision, such as machine vision, inspection, scientific imaging, medical imaging and other business applications. This amplifier interfaces directly to many of the Equipment Solution motor/stage solutions.

Motion Control – High Force Actuator to 50,000 Lbs!

Vaughan, Ontario, Canada — Motion Control — Tolomatic’s expanded extreme-force electric actuator family now includes the RSX128 actuator, rated up to 50,000 pounds of force (222.4 kN). Designed for replacing hydraulic cylinders and designed for 100 percent duty cycle, the RSX actuator features Tolomatic’s precision-ground planetary roller screws for operating life in challenging environments. Applications include assembly, metal fabrication (pressing, punching, clamping), automotive manufacturing, timber processing, motion simulators and more.

The RSX128 actuator represents a 60-percent increase in the bi-directional maximum force provided by Tolomatic’s extreme-force RSX electric actuator family. Additional frame sizes include the RSX080 which provides 18,000 lbf/80kN and the RSX096P press-model which is optimized to provide extend force up to (40,000 lbf/178 kN).

Motion Control – High Speed Integrated Bearing and Drive System

E. Longmeadow, MA –Motion Control – LM76 is the Exclusive North American Distributor of a new high speed integrated bearing and drive system featuring +/- 5 micron repeatability, and zero backlash! This new X-Axis BE125-10 Open Screw Drive System sets new standards for: Length of travel, speed, and precision for Cartesian Robots (robots that move in X,Y and Z axes according to Cartesian Coordinates also know as rectangular coordinates) and single axis linear stages!

The new X-Axis BE125-10 Open Screw Drive System is a compact linear stage measuring 125 mm (4.921 in.) wide x 86 mm (3.386 in.) high x 4391 mm (172.874 in.) long and can handle dynamic loads to 500 kg (1102 lbs). The standard stroke length is 4000 mm (157.480 in.) and custom stroke lengths to 10 m (32.8 ft) can be specified.

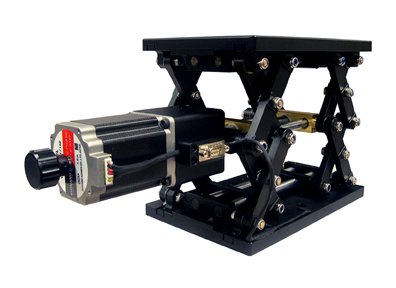

Motion Control – Elevator Stages

Van Nuys, CA – — Motion Control- Optimal Engineering Systems, Inc. (OES) has released two new high precision Z-Axis Elevator Stages. The AZV9010 and the AZV9020 Motorized Z-Axis Linear Positioning Stages have vertical travels of 10 mm and 20 mm respectively.

The vertical motion of each Z-Axis Stage is driven by an 8 mm diameter ball screw with a 1 mm lead, and guided by cross roller bearings. Very high resolutions of 0.1 micron or 0.05 microns with 10/20 micro-steps per step motor drive, and repeatability of +/- 0.5 microns makes these two Z-Axis Stages ideal for: Microscopy, inspection, metrology, positioning, photonics, sampling, and laser drilling and machining.
